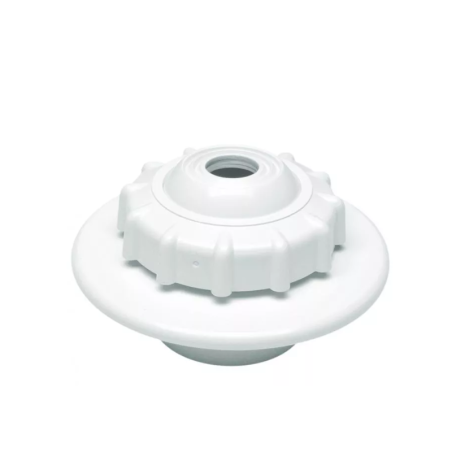

Multiflow discharge nozzle for gluing AstralPool
- Multiflow discharge nozzle 88x24 to glue inside a Ø 50 mm PN 10 tube.
- Made of ABS in white.
- Multiflow System consists in that the nozzle ball is supplied pre-marked with a series of diameters (14-20 and 25). With the help of a punch, one of the diameters can be selected at the time of installation.
Multiflow delivery nozzle. Characteristics
MULTIFLOW SYSTEM This system consists in the fact that the nozzle ball is supplied pre-marked with a series of diameters (14, 20 and 25).
With the help of a punch (also supplied with the nozzle) you can select one of the diameters at the time of installation.
Max. recommended for a maximum passage speed of 4 m/sec., according to the UNE 13451-1 standard: Ø14= 2.2 m3/h, Ø20 = 4.5 m3/h, Ø25 = 7 m3/h. To glue to a Ø 50 mm PN 10 tube. Made of white ABS.
